How to change Grbl settings for XE-PRO 8040Updated a year ago

I. For LaserGRBL

1.Connect the machine to computer.

2.Open the LaserGRBL, connect the machine. Click path: Grbl -> Grbl Configuration

3.Click “Import”, select the XE-PRO 8040 configuration document, it will be imported to laserGrbl. Message will show as picture-3. Changing configurations finished.



II. For Lightburn

1.Connect the machine to Lightburn. Open Console. Make sure the COM is correct.

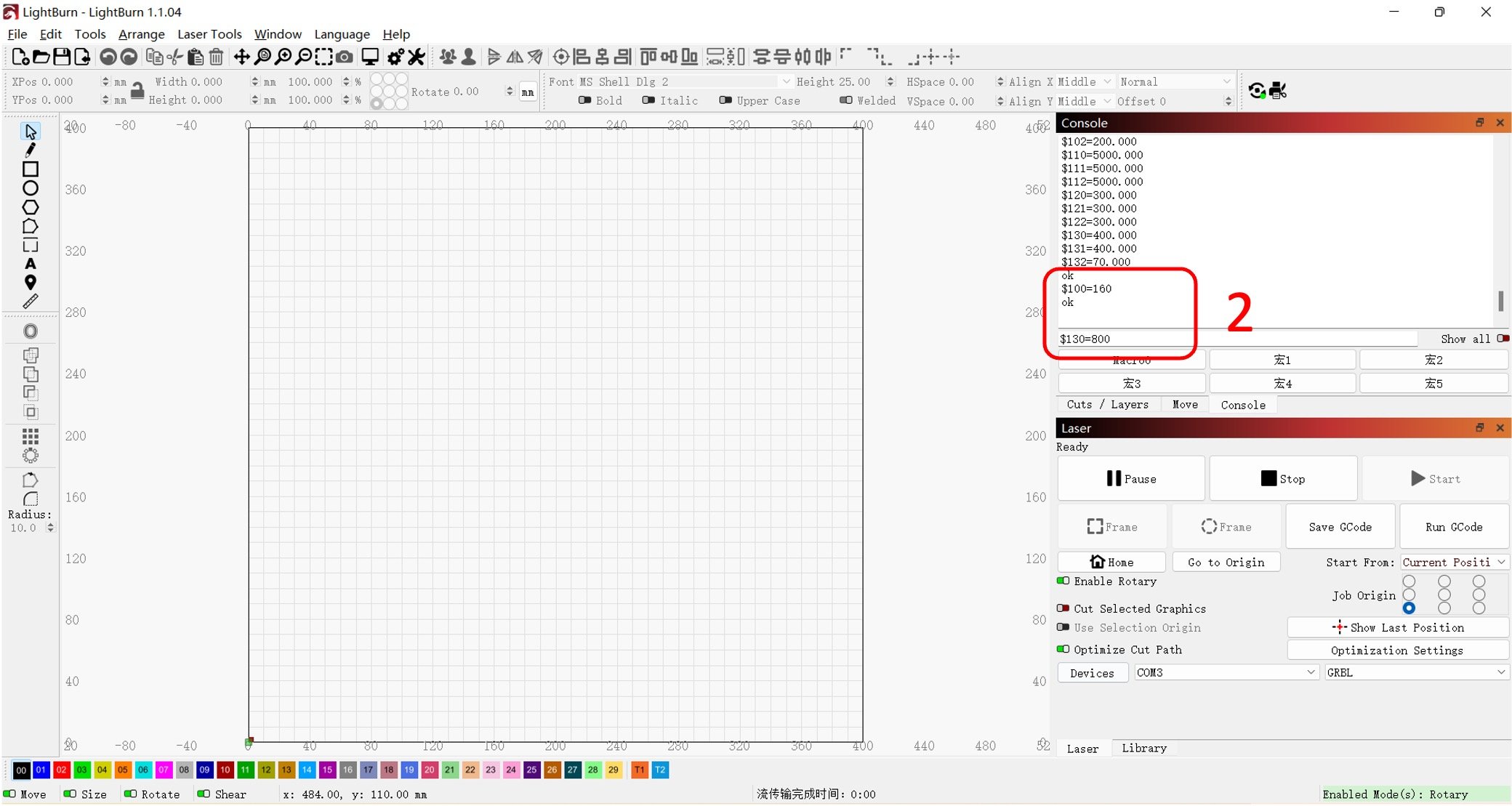

2.Enter command $100=160, and send. When console shows “ok”, the configuration is changed successfully.

3.Enter command $130=800, and send. When console shows “ok”, the configuration is changed successfully.

III. For UGS

1.Connect the machine to UGS.  Open console.

2.Enter command $100=160, and send. When console shows “ok”, the configuration is changed successfully.

3.Enter command $130=800, and send. When console shows “ok”, the configuration is changed successfully.

IV. For Candle

1.Connect the machine to Candle.  Open settings. Make sure the COM is correct.

2.Enter command $100=160, and send. When console shows “ok”, the configuration is changed successfully.

3.Enter command $130=800, and send. When console shows “ok”, the configuration is changed successfully.



XE-PRO 8040 Grbl settings file download:
